PCC 6505 – Automatic Profile Cutting Centre

PCC 6505 is 5-axis CNC controlled machining centre. Ability to load up to 10 lengths at a time.

SKU: PCC6505 Category: Tags: , , , ,

Specifications

• 5 – Axis Servo controlled Cutting Centre
• Fully automated feeding, carrying, positioning, cutting and transferring units
• Pneumatic gripper for accurate positioning of the profile
• Horizontal and vertical clamping of the profile

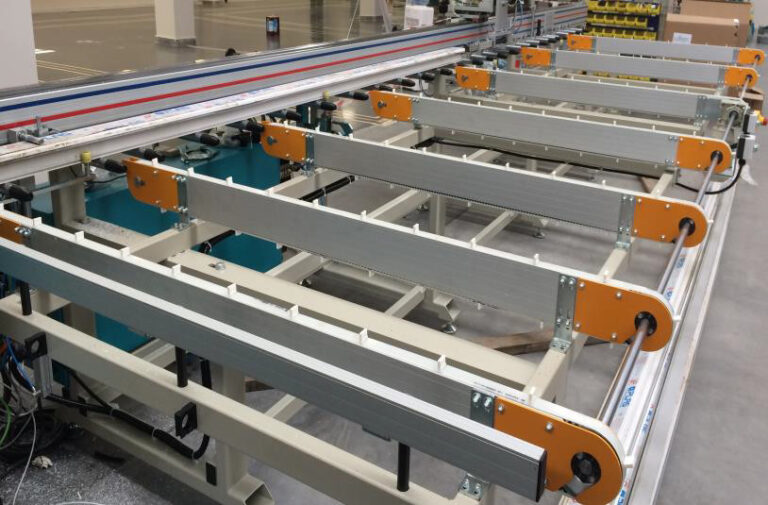

• Automatic conveyor unit with the loading capacity of 10 profiles
• Ø 500 mm dia Servo controlled saw blade
• 45⁰ to 135⁰ with the accuracy of -/+ 0.1⁰
• Windows based PC and 15.6’’ LCD touch screen monitor
• Remote desktop connection and providing technical support
• User friendly interface software that is compatible with most CAD programs
• Automatic lubrication system
• Low pressure control for saw blade safety operations
• LED interior lighting

Options

• Barcode Printer
• Profile Rotation System



Additional information

Weight 3070 kg
