$8,990.00$9,490.00 + GST

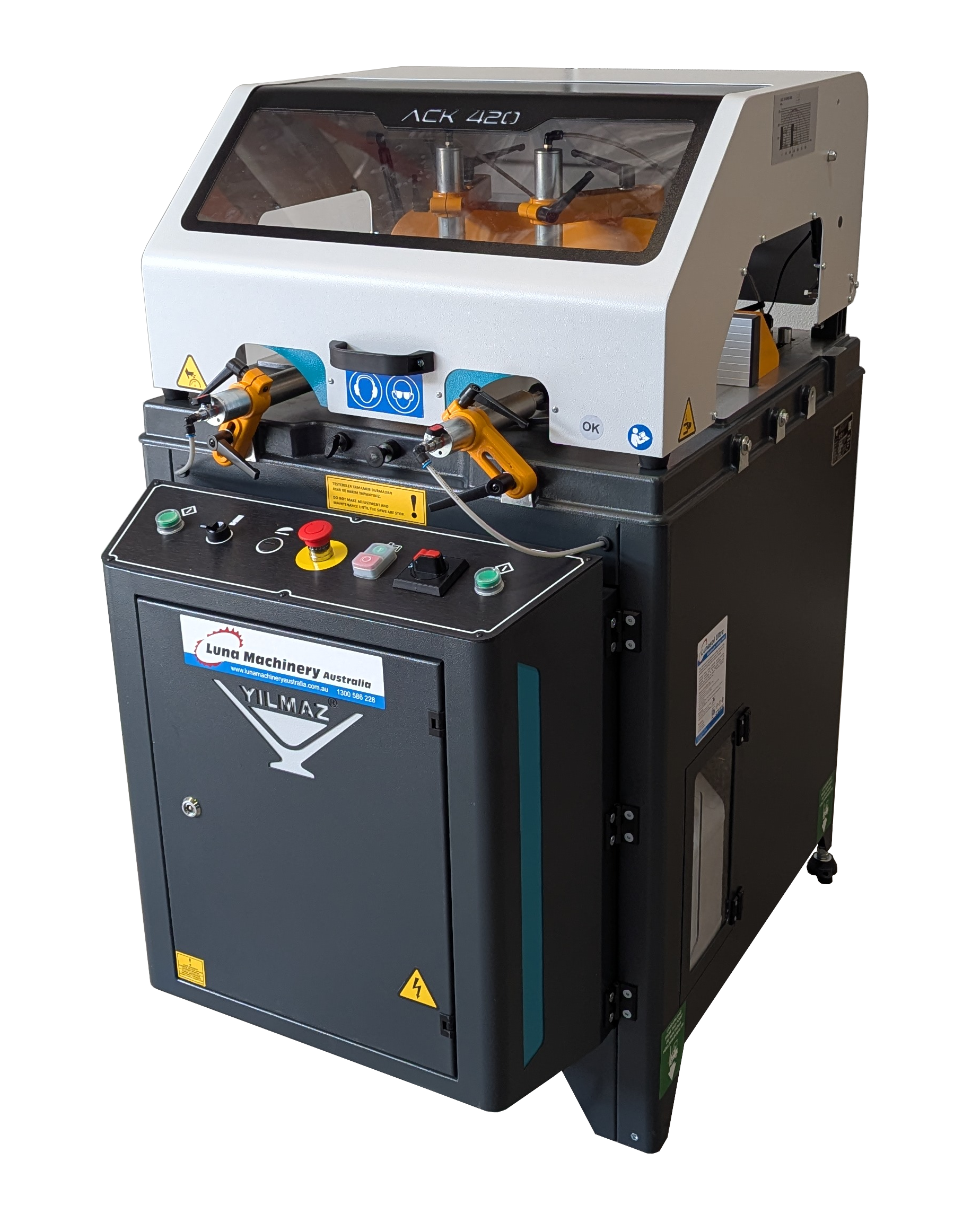

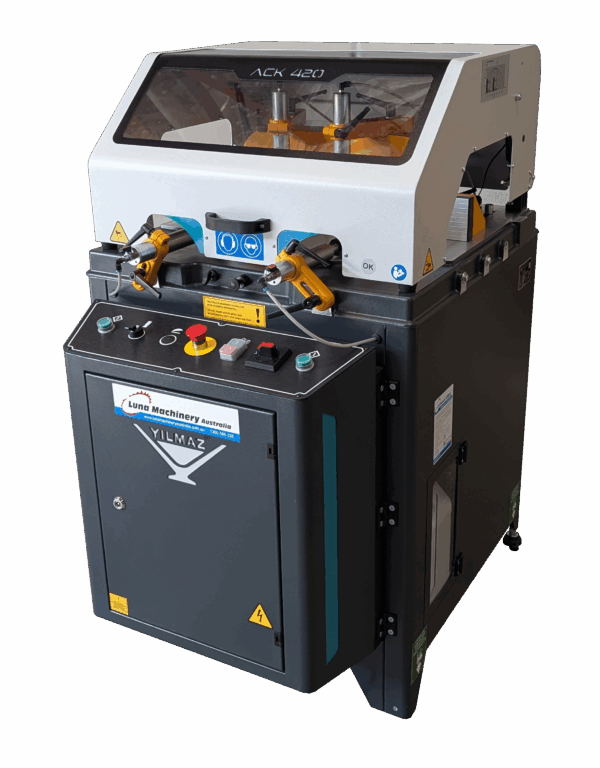

The Luna ACK420NPS Aluminium Up-Cut Mitre Saw with it’s large capacity and safety features is the ideal replacement for ageing drop saws for those who wish to see an immediate improvement in safety and efficiency.


  • 420mm Diameter Blade
  • Up to 140mm High Cutting Capacity
  • 200mm Wide Cutting Capacity @90°
  • 140mm Wide Cutting Capacity @45°
  • 50mm Wide Cutting Capacity @75°
  • 2.2kW (3HP) 3 Phase

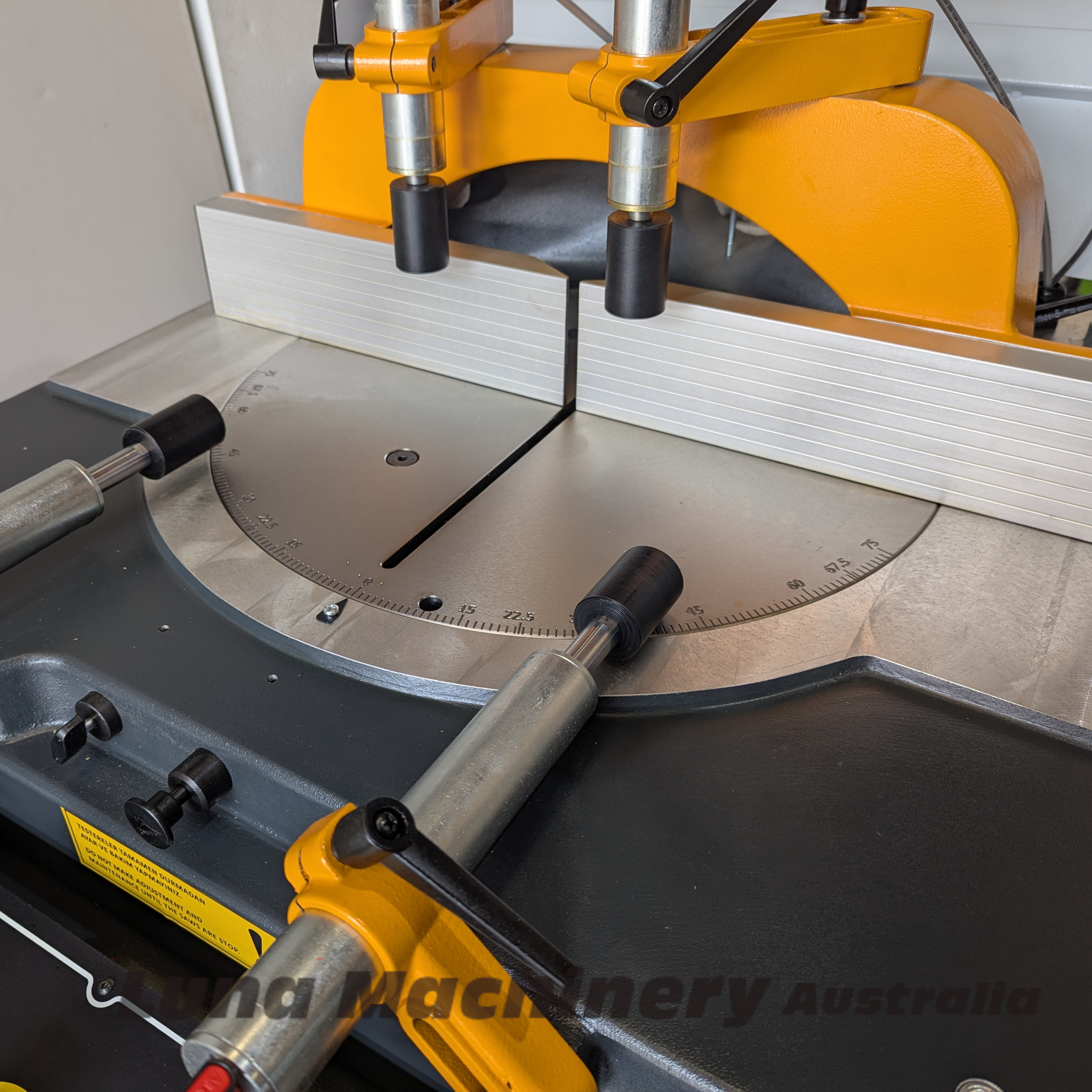

  • 2 Vertical Pneumatic Clamps
  • 2 Horizontal Pneumatic Clamps
  • Hydro Pneumatic blade feed with variable feed rate
  • 2 Hand safety operation
  • Spray mist blade lubrication
  • Air duster gun
  • Electrical cutout on hood and blade access panel
  • LED light in hood
  • 420mm 120T Saw blade included

With fence fully adjusted back

  • 330mm W Cutting Capacity @90°
  • 270mm W Cutting Capacity @45°

Additional information

Weight 260 kg
Dimensions 86 × 98 × 150 cm

Manual Hood, Pneumatic Hood

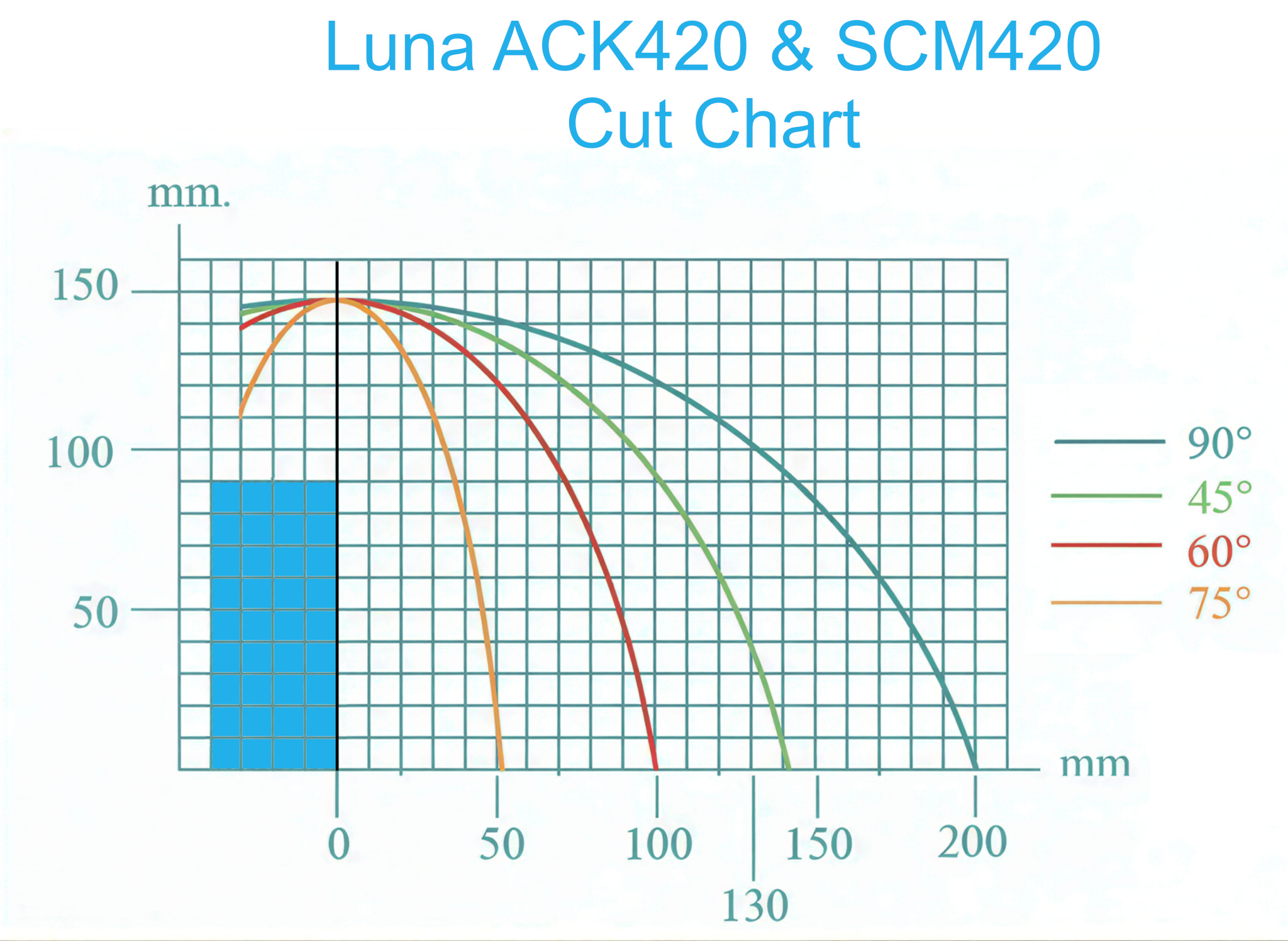

Cut Chart

Cut Chart with the fence in Standard Position

Cut Chart with Fence moved back


ACK420N Manual ENG
