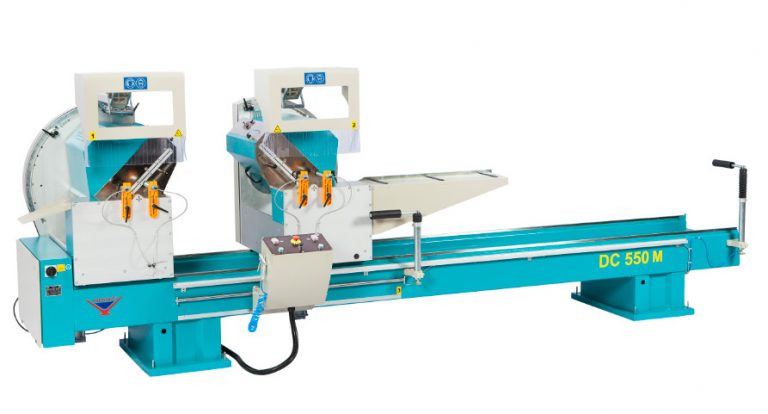

DC550MS

$36,900.00 + GST

Semi-Automatic Double Mitre Saw

If you’re after fast and accurate cutting, with large capacity at an affordable price, a DC550MS double mitre saw is the way to go.

Out of stock

Specifications

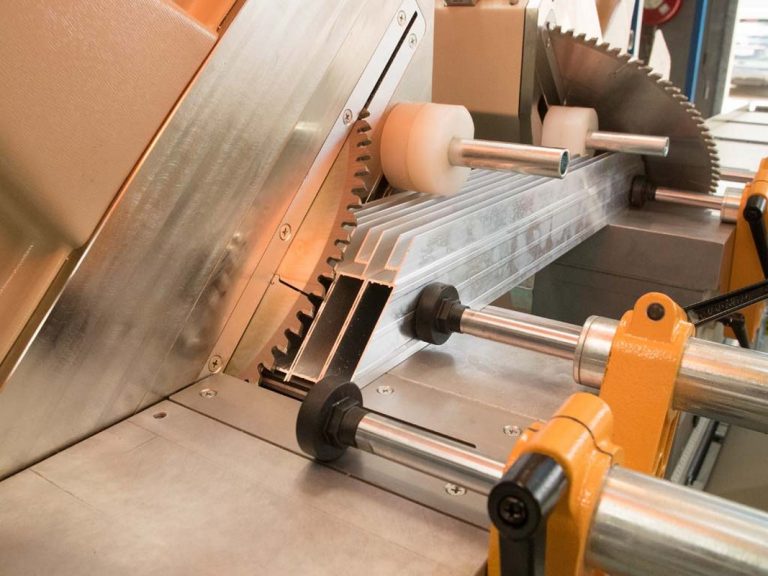

    • 2 x 550mm Diameter Saw Blades
    • 2 x 4.0kW (5.4HP) Induction Motors 415V
    • 365mm H x 200mm W Cutting Capacity @90
    • 262mm H x 200mm W Cutting Capacity @45
    • 135mm H x 200mm W Cutting Capacity @22.5
    • Maximum cut length 4,000mm
    • Adjustable Hydro-Pneumatic Blade Feed Rate

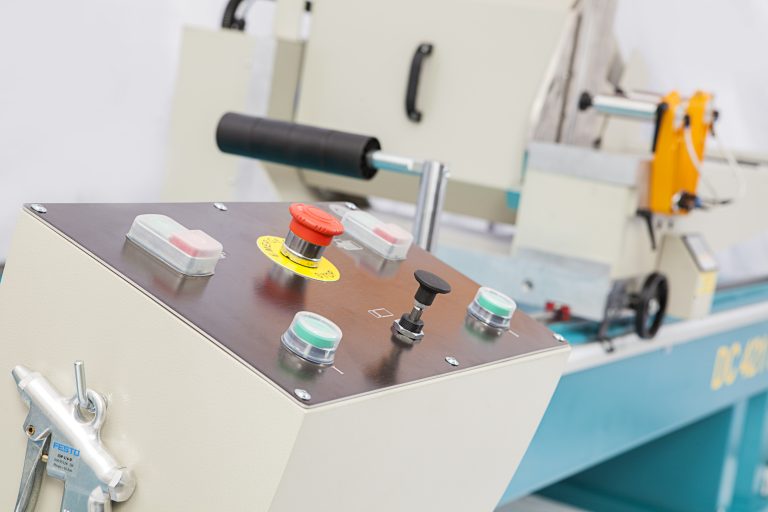

    • Two Hand Safety Operation

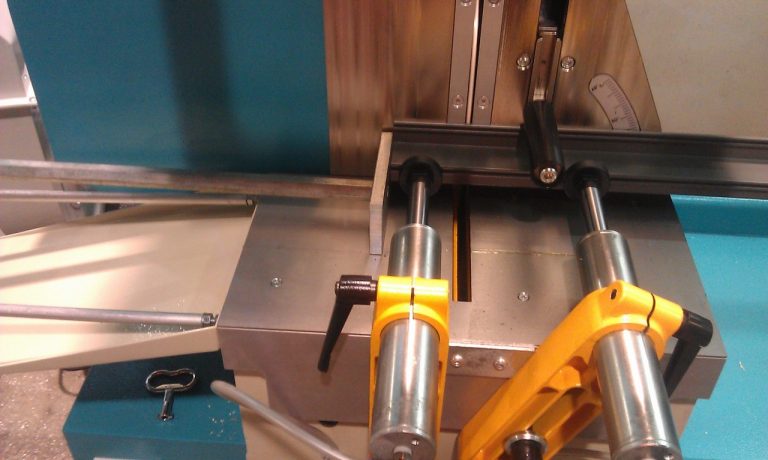

    • 2 Horizontal Clamps per head
    • 1 Vertical Clamp per head
    • Spray mist lubrication
    • Air Duster Gun
    • 1,400mm Conveyor on Mobile head.

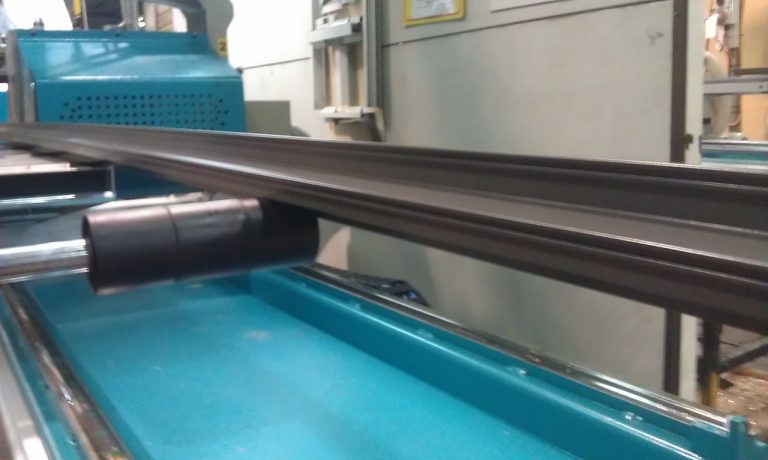

    • 2 x Swing Any Profile Support Arms

    Optional

    • Infeed Coveyors and lengthstop upto 6 Metres
    • Swarf Extractor

Additional information

Weight 1755 kg
Dimensions 511 × 125 × 188 cm

Cut Chart
