$42,900.00$43,900.00 + GST

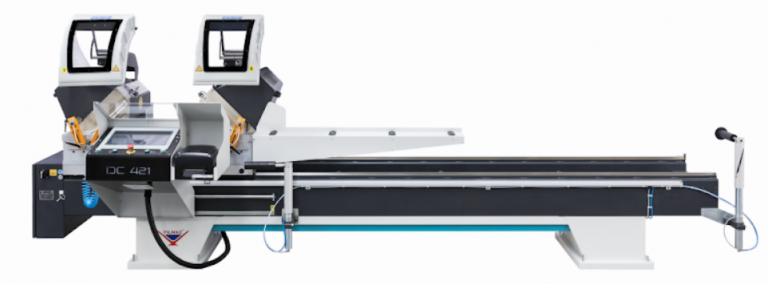

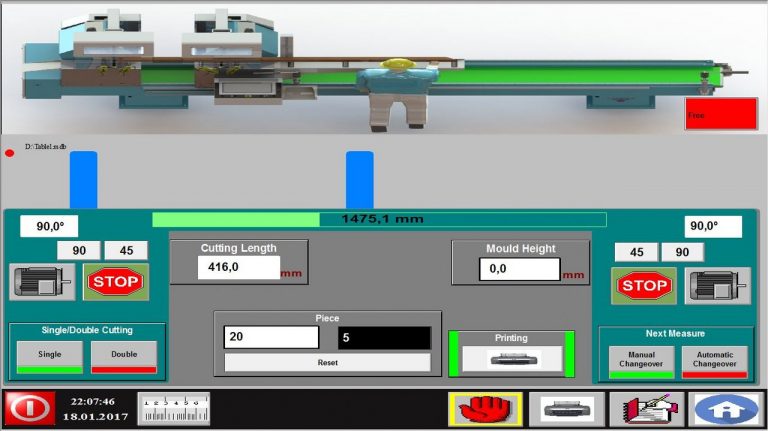

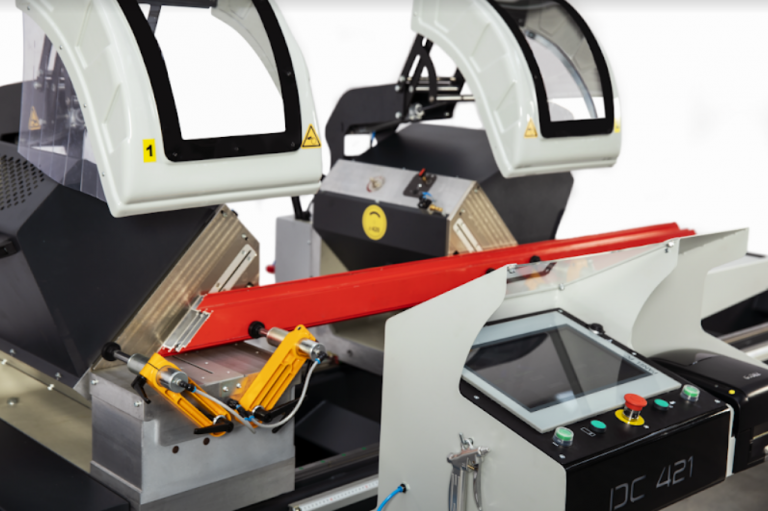

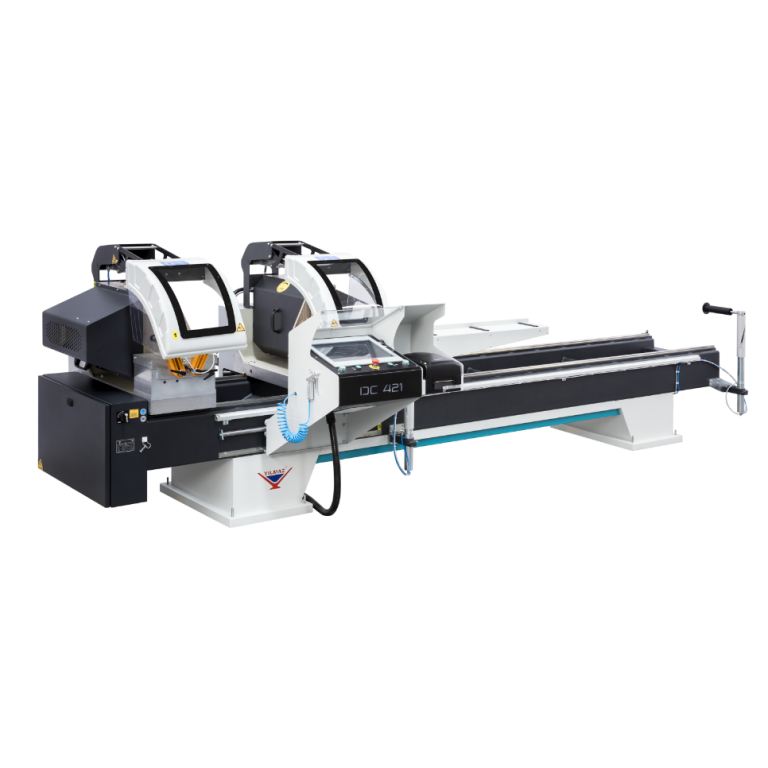

The Luna DC421PBSU double mitre saw for Aluminium, uPVC and Timber is a fully automatic sawing solution, with 3 modes of operation. 1) Manual cuting, 2) Auto feed repetitive cutting or 3) Download your cutting list via Ethernet, WiFi or USB in Microsoft mdb or csv Format.

Reduce time and waste with a computerised double mitre saw.

For fast, accurate and efficient cutting you can’t go past the DC421PBSU.


  • 2 x 420mm Diameter Saw Blades
  • 2 x 2.2kW (3HP) Induction Motors 415V
  • 268mm H x 158mm W Cutting Capacity @90
  • 192mm H x 158mm W Cutting Capacity @45
  • Maximum cut length 8,300mm
  • Minimum cut at @90 is 360mm
  • Minimum cut at @45 is 380mm
  • Adjustable Hydro-Pneumatic Blade Feed Rate
  • Two Hand Safety Operation

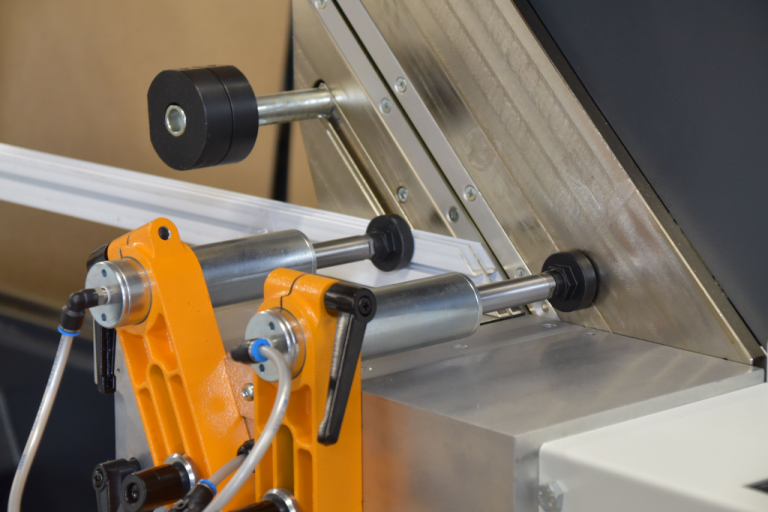

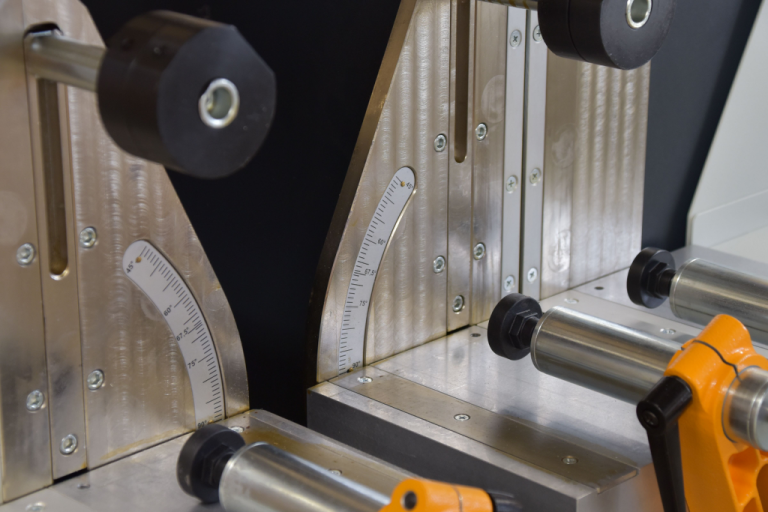

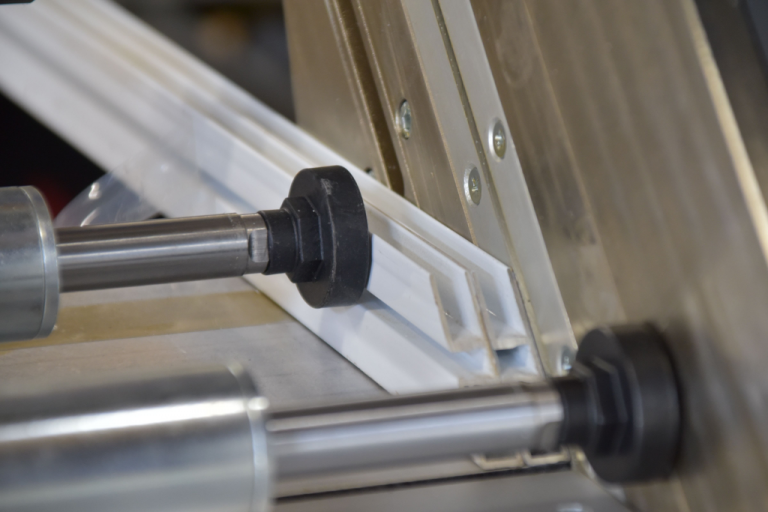

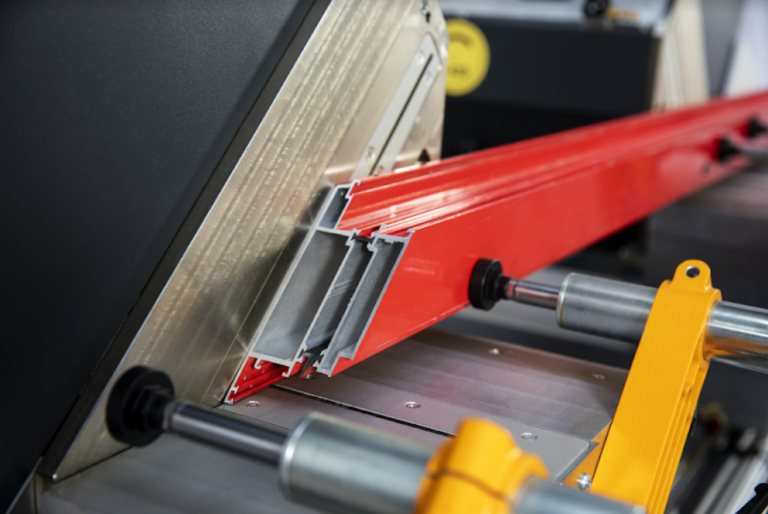

  • 2 Horizontal Clamps per head
  • Spray mist lubrication
  • Air Duster Gun
  • 1,400mm Conveyor on Mobile head.
  • 2 x Automatic Swing Away Profile Support Arms

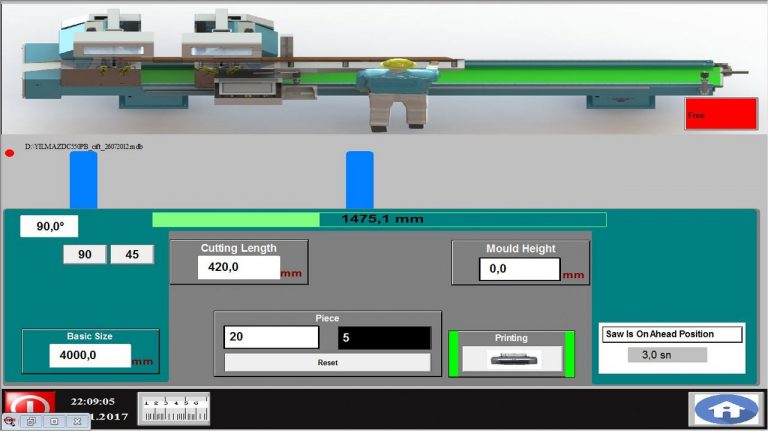

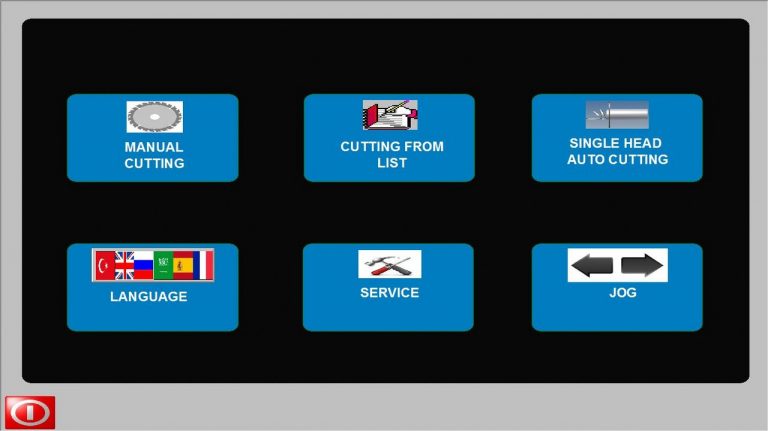

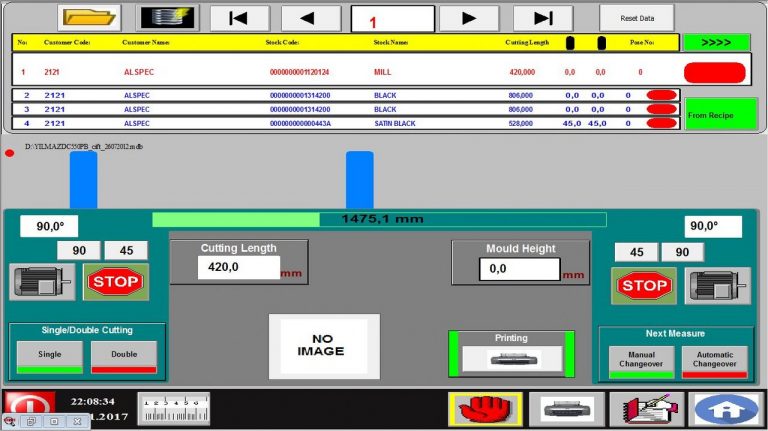

  • CNC Windows Base Panel PC Controller
  • Loads cutting lists in MDB and CSV format.


  • Vertical Clamps
  • Barcode Printer
  • Infeed Conveyor and lengthstop up to 6.0 metres
  • Swarf Extractor

Additional information

Weight 1346 kg
Dimensions 470 × 110 × 161 cm

Standard, Vertical Clamps

Cut Chart

Aluminium Double Mitre Saw


DC421 Manual 2018 ENG
