Sale!

CDC600

Original price was: $129,000.00.Current price is: $119,950.00. + GST

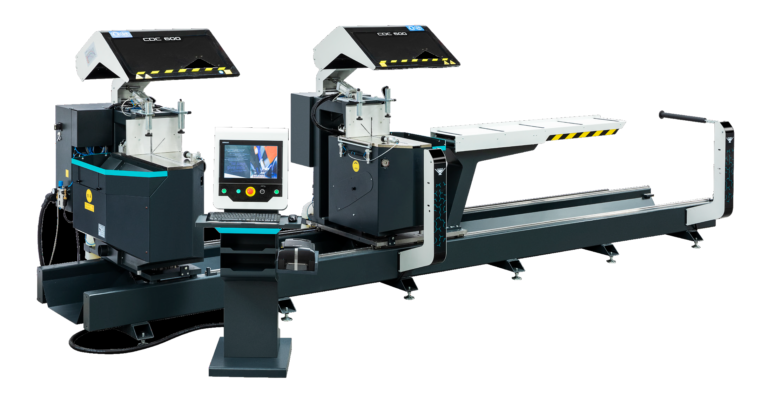

Full CNC Automatic Compound Double Mitre Saw

If you’re after fast and accurate cutting, with large capacity, the CDC600 double mitre saw is the way to go.

Out of stock

Specifications

    • 2 x 600mm Diameter Saw Blades
    • 2 x 4.0kW (5.36HP) Induction Motors 415V

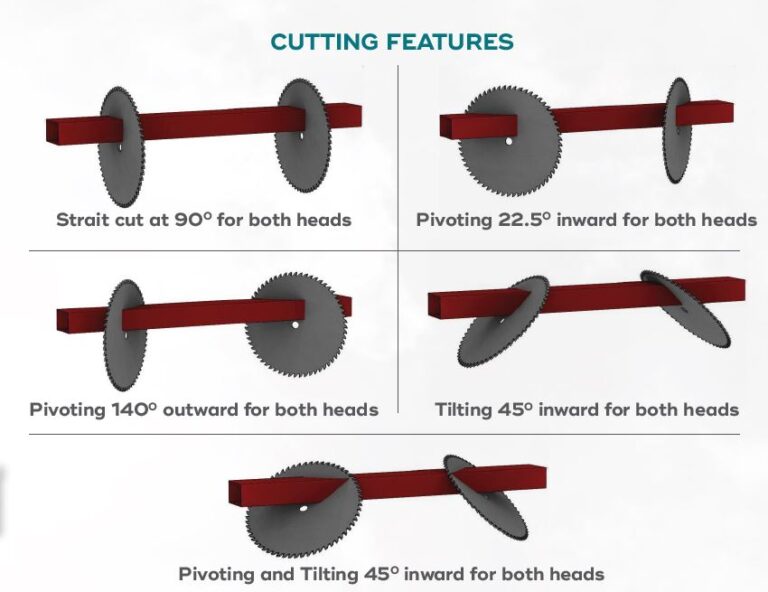

    • Cutting Capacity up to 210mm high
    • Cutting Capacity @90 up to 470mm wide
    • Cutting Capacity @45 up to 330mm wide
    • Cutting Capacity @22.5 up to 180mm wide
    • Maximum cut length 4,000mm(10,000mm with software)
    • Adjustable Hydro-Pneumatic Blade Feed Rate
    • Two Hand Safety Operation
    • 2 Horizontal Clamps per head
    • 1 Vertical Clamp per head
    • Spray mist lubrication
    • Air Duster Gun
    • 1,400mm Conveyor on Mobile head.

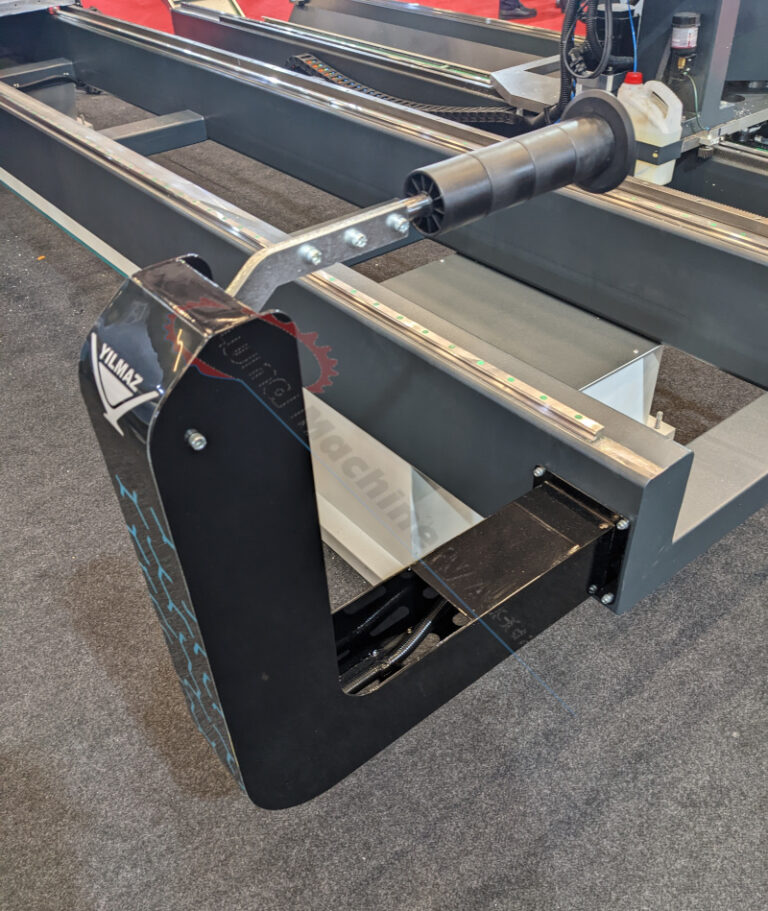

    • 2 x Swing Any Profile Support Arms

    Optional

    • Infeed Conveyors and lengthstop upto 6 Metres
    • Swarf Extractor

Additional information

Weight 1755 kg
Dimensions 511 × 125 × 188 cm

Cut Chart

Video
