Specifications

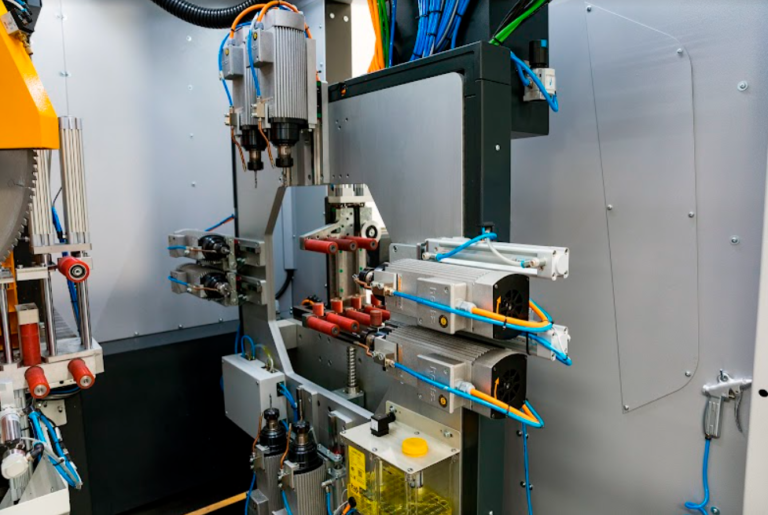

- Total of 8 tools (4pc. x Ø5 and 4pc x Ø8), consisting of milling cutters
- Safety fence around the machine
- Keyboard & mouse
- Servo control system providing CNC motion at 8-axis
- Fully automated feeding, carrying, positioning, cutting and transferring units
- Performing operations on four sides of aluminium and PVC profiles such as milling, opening key holes, hinge holes, handle holes, marking, saw blade cutting etc.
- Pneumatic gripper for accurate positioning of the profile
- Automatically working horizontal and vertical clamping system
- Profile processing capacity with 1600-1800 running meter/ 8 hours
- Automatic conveyor unit with 7 pcs of profile loading capacity

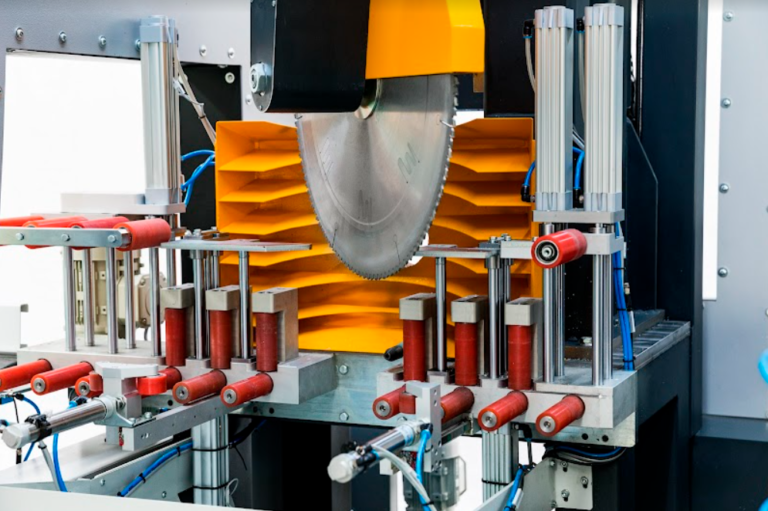

- Servo controlled down-cutting saw blade with Ø 550 mm dia. that rotates between the range of 45° and 135°
- Windows based PC and 15.6’’ LCD touch screen monitor
- Remote desktop connection and providing technical support
- Ability to perform milling and cutting operations at the same time
- User friendly interface software that is compatible with CAD programs
- Automatic frame and sash profile recognition system
- Automatic profile width and height dimension control system
- Automatic lubrication system
- Automatic tool spray cooling system
- Low pressure control for safety operations
- LED interior lighting with very low energy consumption in the cabin

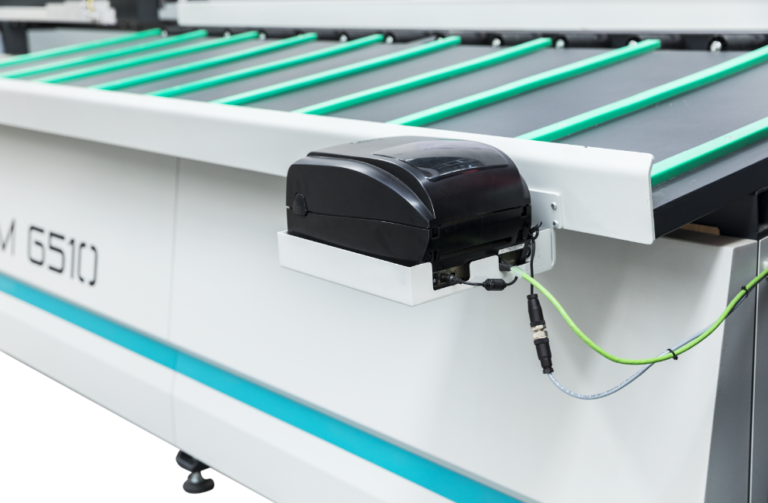

- Barcode printer
