Sale!

ACK550PS/3

$15,900.00 $14,900.00 + GST

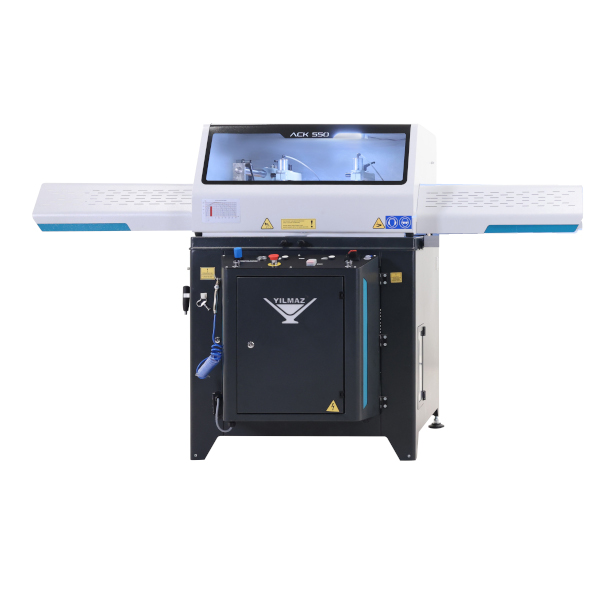

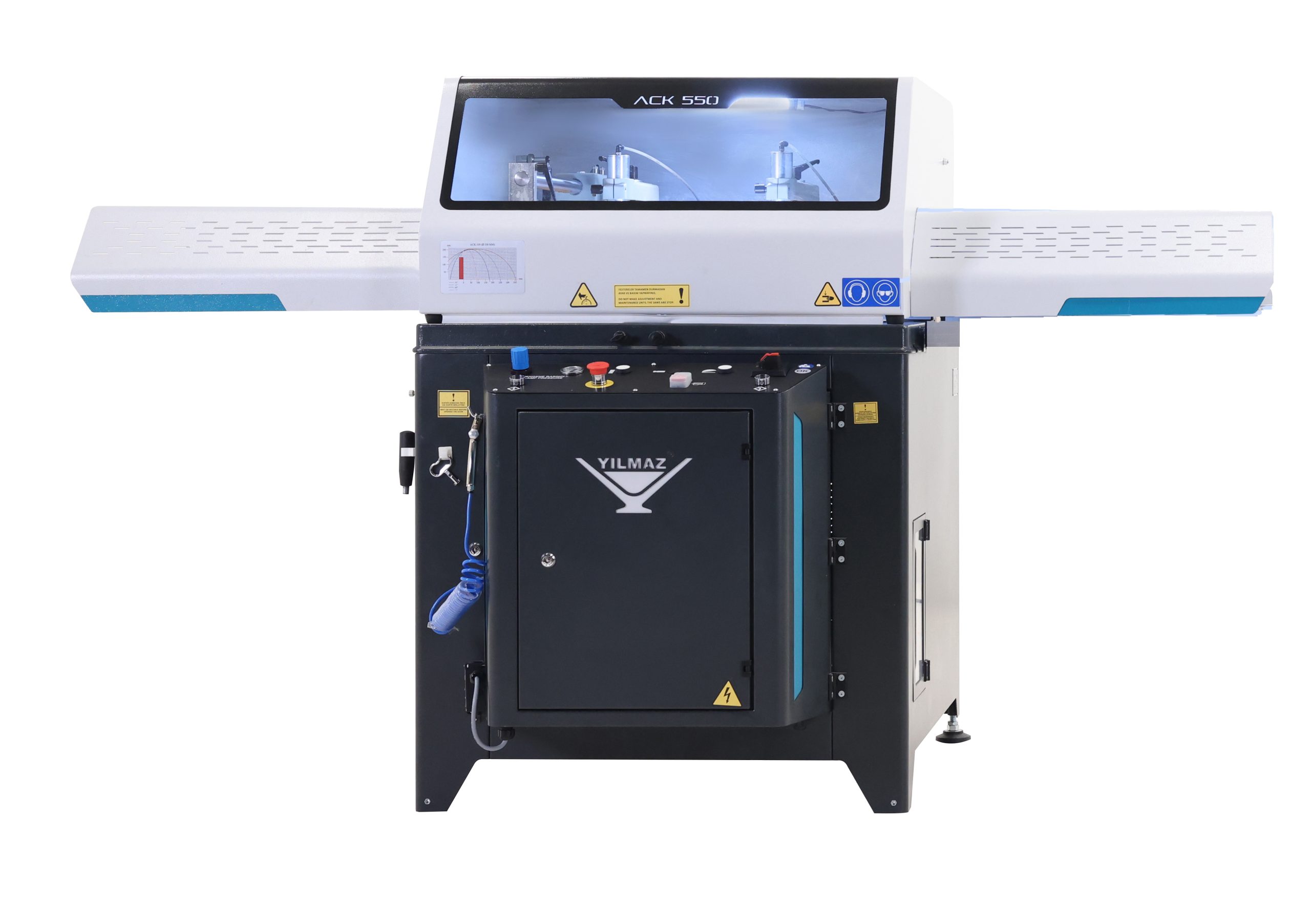

The Luna ACK550PS/3 features a large cutting capacity.

Ideal for window shutter box sections and large commercial sections.

Specifications

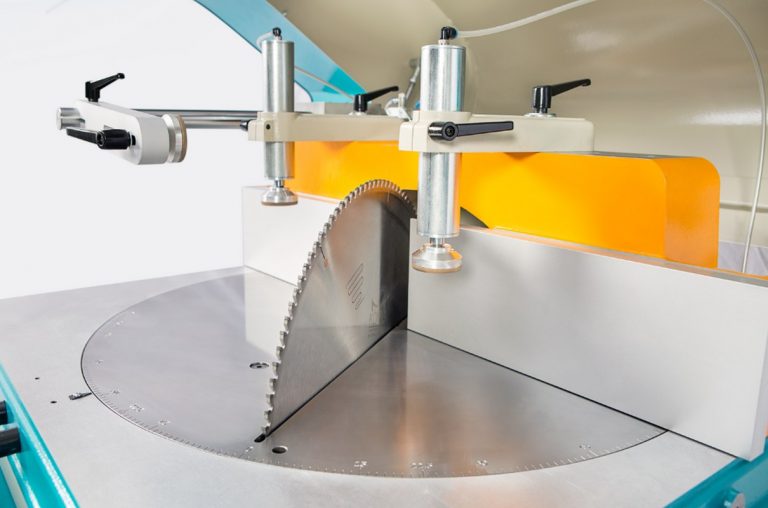

  • 550mm Diameter Blade

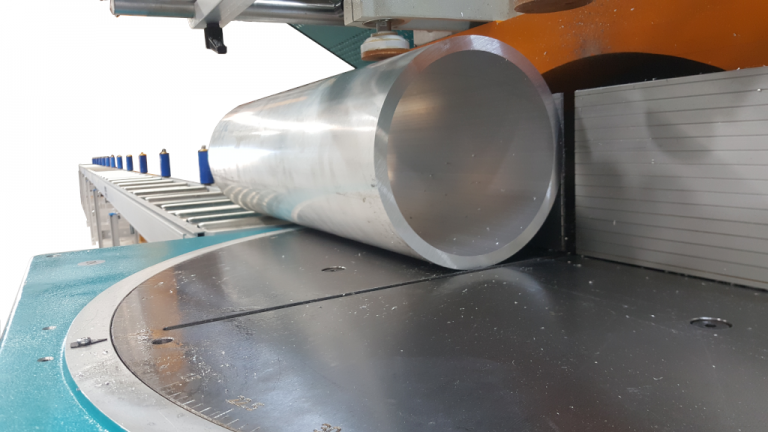

  • Up to 200mm High Cutting Capacity
  • 330mm Wide Cutting Capacity @90°
  • 250mm Wide Cutting Capacity @45°
  • 90mm Wide Cutting Capacity @75°
  • 3.0kW (4HP) 3 Phase or 4.0kW (5.4HP)
  • 75°,  60°,   45°,  30°,  22.5°,  15°,  90° Positive Locating Points

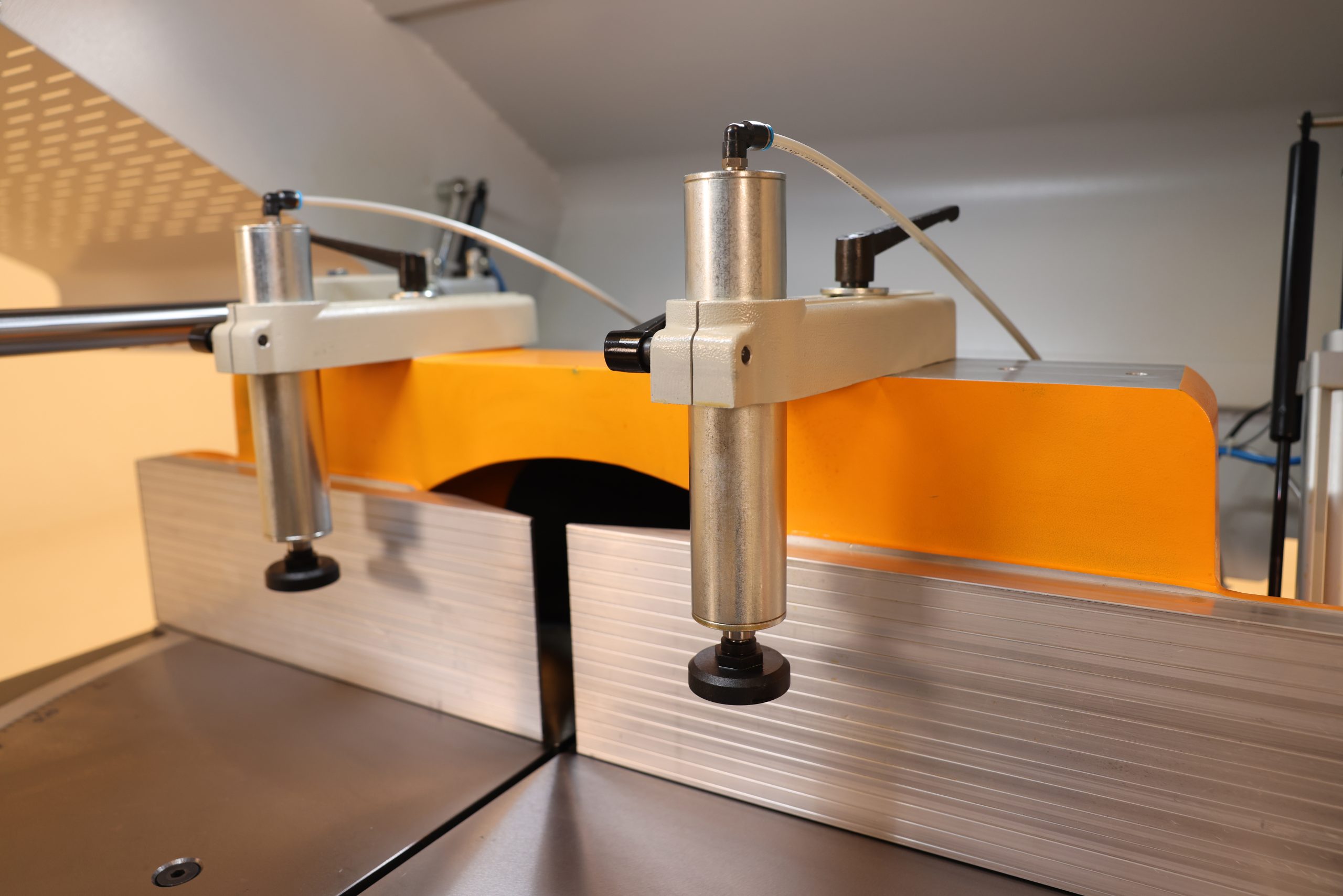

  • 2 Vertical Pneumatic Clamps
  • 1 Horizontal Pneumatic Clamp
  • Hydro Pneumatic blade feed with variable feed rate
  • 2 Hand safety operation
  • Spray mist blade lubrication
  • Air Duster Gun
  • Electrical cutout on Hood and blade access panel
  • LED light in Hood
  • 550mm Carbide tip Saw blade included

Additional information

Weight 385 kg
Dimensions 131 × 106 × 159 cm

Downloads

ACK550 Manual 2015 ENG

ACK550 Spare Parts List 2017

Videos

Cut Chart
