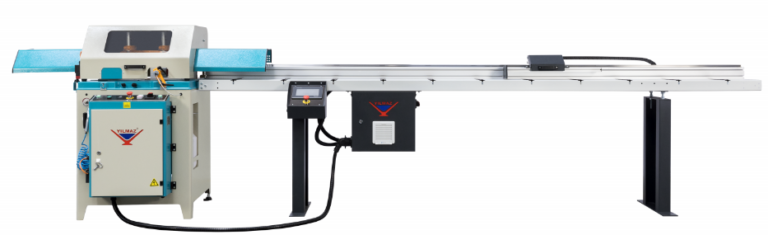

SCM 420 – Auto Feed & Cut Aluminium Saw

$27,900.00 – $30,900.00 + GST

The Luna SCM 420 is suitable for high volume, 90° cutting of PVC and aluminium profiles and extrusions for window manufacturing.

SKU: AM AUTO SCM420 Category: Tags: , ,

Specifications

  • 420mm Diameter Saw Blade
  • Up to 140mm High Cutting Capacity
  • 200mm Wide Cutting Capacity @90°
  • 140mm Wide Cutting Capacity @45°
  • 50mm Wide Cutting Capacity @75°
  • 2.2kW (3HP) 415V 3 Phase
  • 1 Vertical Pneumatic Roller Clamp
  • 2 Horizontal Pneumatic Clamps
  • Hydro Pneumatic blade feed with variable feed rate
  • Adjustable cut height and cut length
  • Spray mist blade lubrication
  • Air Duster Gun

Additional information

Weight 500 kg
Dimensions 900 × 152 × 142 cm
Length

L4 3.6 Metre, L7 6.6 Metre
