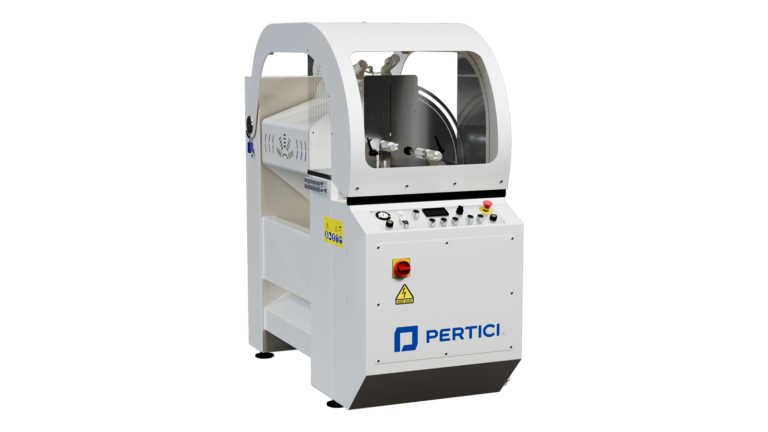

Luna back cutting saws feature large diameter blades with the ability to rotate from 90 degrees to 22.5 degrees both left and right, quick and easily, at the press of a button.

Suitable for cutting large sections requiring regular accurate angle changes.

Two hand operation and automatic hood makes Luna back cutting saws one of the safest saws to use.

This product is currently out of stock and unavailable.


  • 550mm Diameter Blade
  • 330mm H x 195mm W Cutting Capacity @90°
  • 230mm H x 195mm W Cutting Capacity @45°
  • 120mm H x 195mm W Cutting Capacity @22.5°
  • 3.0kW (4HP) 3 Phase Induction Motor
  • 1 Vertical Pneumatic Clamp
  • 2 Horizontal Pneumatic Clamps
  • Hydro Pneumatic blade feed with variable feed rate
  • 2 Hand safety operation
  • Spray mist blade lubrication
  • Air Duster Gun
  • 550mm 128T Saw blade included

Additional information

Weight 385 kg
Dimensions 99 × 108 × 157 cm

R55, RE55

Cut Chart
