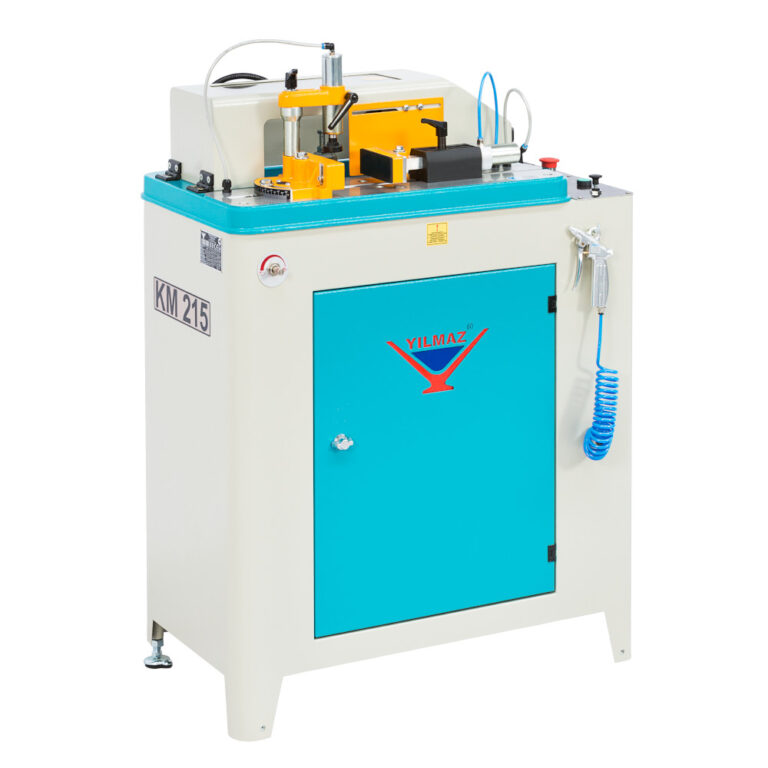

KM215APS/3 Semi Automatic End Mill

$6,490.00 + GST

The Luna KM215APS/3 Semi Automatic End Mill, with its powerful 1.2kW motor can handle almost all your notching and end milling needs.

The quick change arbour and 4 position depth stop makes it easy and fast to change from one operation to another.

The fully enclosed hood, with electrical safety cutout switch also makes it extremely safe and easy to use.



Specifications

  • 2 x Pneumatic clamps (1 x vertical, 1 x horizontal)
  • Standard cutter size 150mm dia, Maximium cutter size 170mm dia
  • Maximum cut height 100mm
  • Maximum depth of cut 55mm
  • Fully enclosed hood with electrical safety cut out switch
  • Adjustable 4 position depth gauge
  • Ideal for simple end milling operations
  • Spray mist lubricator
  • Air gun included
  • Manual changing of cutters on a quick change removable arbor
  • Angled base for swarf extraction
  • One(1) cutter arbor
  • MKN 100 – 1.0 Metre roller conveyor

Additional information

Weight 120 kg
Dimensions 55 × 92 × 127 cm

Downloads

KM215 Manual 2014

KM215 Spare Parts 2017

Video
