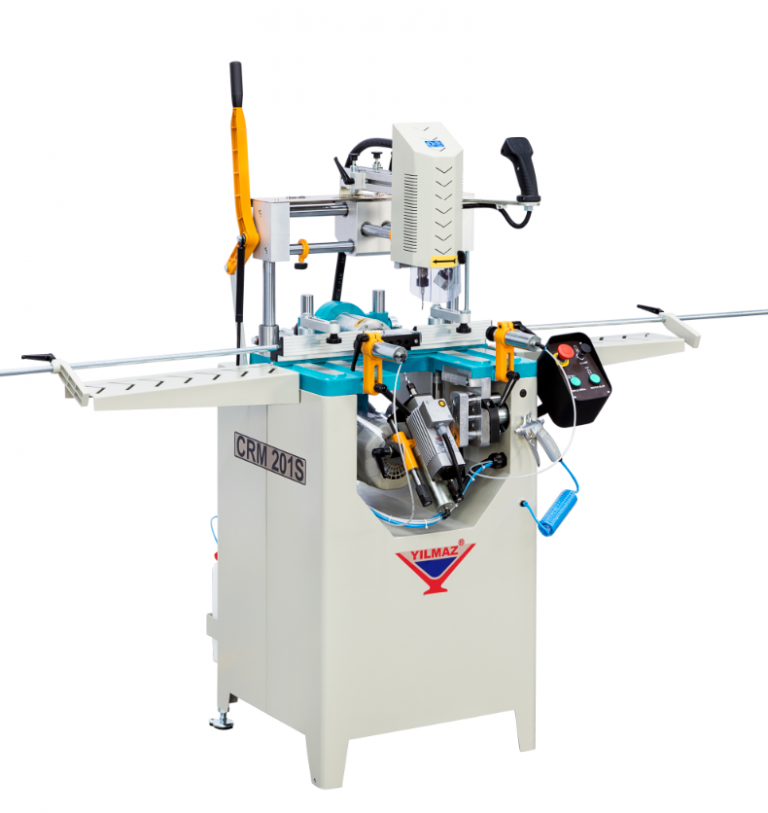

CRM201S – Water Slot Machine

$10,990.00 + GST

The CRM201s is a heavy duty Copy Router with triple drills for handles and locks, and water slot cutting

Capable of accepting large uPVC Sections

With the CRM201S you can produce lock cut-outs quick & easily.

It comes with two Manual clamps, a further optional 2 Vertical clamps can easily be fitted.

A standard  template is provided to get your production up and running as quickly as possible.

Additional 1.5M conveyors are available to purchase as a package.

SKU: CRM201S Category:

Specifications

  • 1 x 1.0kW (1.4HP) 240V 1 phase¬†Variable speed motor up to 18000 rpm
  • 1 x 0.75kW (1.0HP) 240V 1 phase Motor 900 rpm, Tripple Drill

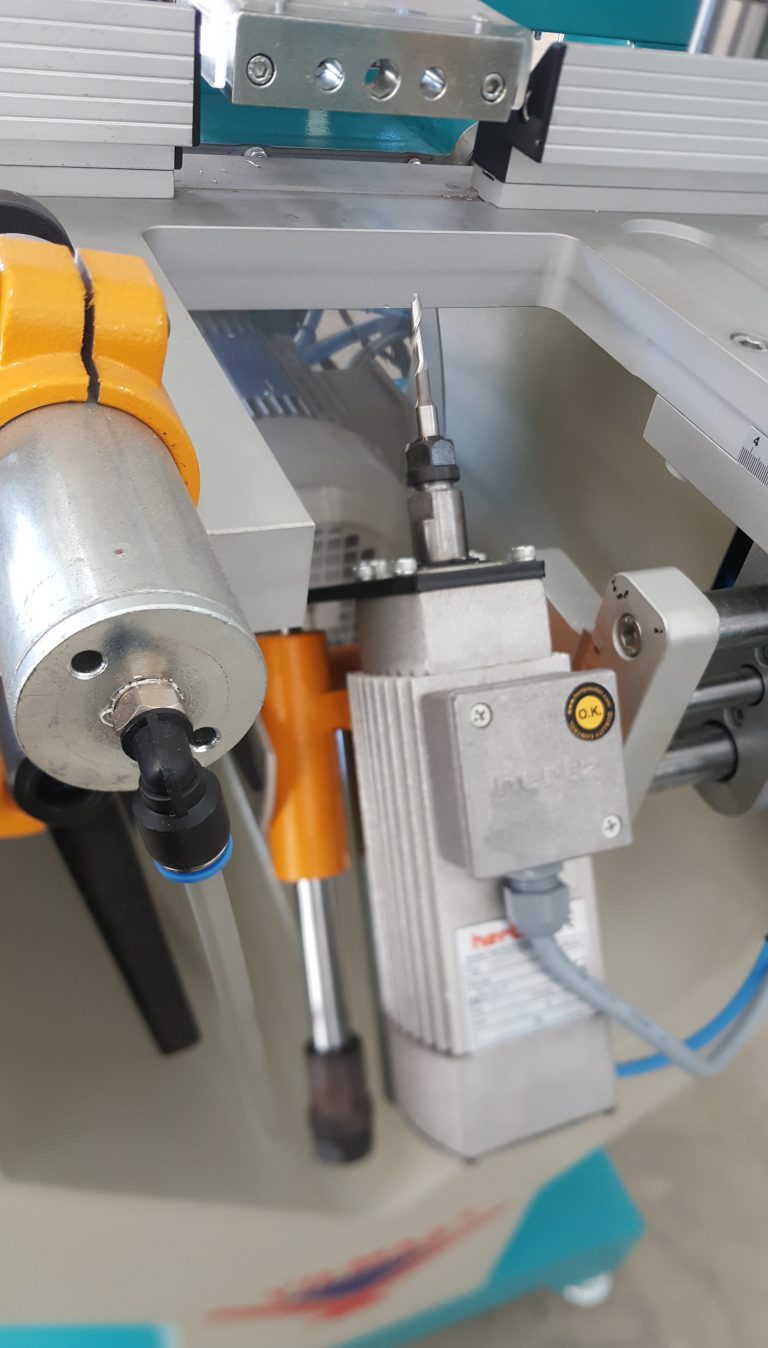

  • 1 x 0.55kW (0.7HP) 240V 1 phase Motor 18000rpm Water Slotter
  • Two (2) Template Copy Pins with scaled settings
  • Trigger switch Motor & Spray Mist control
  • Maximum slot 300 x 130mm, Height 135mm
  • Template Size 500 x 150mm (Usable area 460 x 140mm)
  • Recessed table for through routing
  • Weight 200 kgs
  • One (1) template for locks
  • One (1) 8mm ER Series Collet,
  • 5mm Copy pin for 1:1 Ratio tracing
  • Two (2) Horizontal Pneumatic Clamps
  • Pneumatic spray mist with One (1) litre coolant
  • Independent switch for clamps & spray mist
  • LED Light for Cutter
  • Air duster gun, Air Pressure Regulator & Lubrication Unit
  • Made in Europe

Additional information

Weight 220 kg
Dimensions 100 × 80 × 149 cm

Downloads

CRM201S_Spare_Parts
