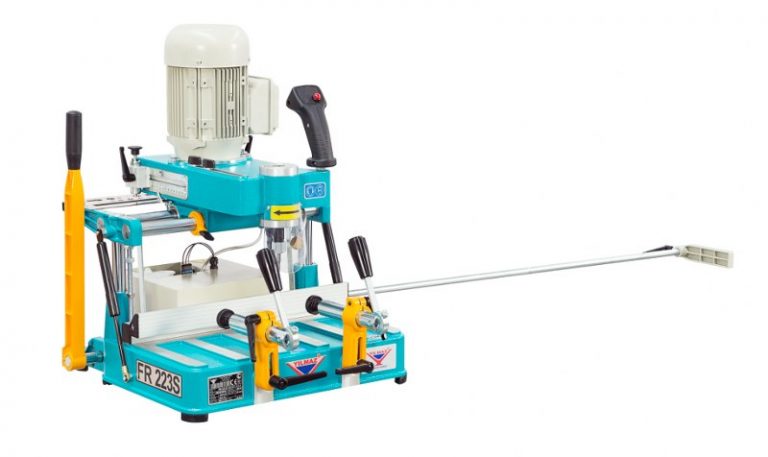

FR223 Copy Router

$3,490.00 – $3,990.00 + GST

The Luna FR223 is a low cost, 1:1 ratio, manual copy router designed to produce lock cut-outs, slots and holes in aluminium extrusion quickly & easily. Supplied with a standard template with cut outs for Lockwood 3580 & 3540 series locks to get you up and working fast. Other templates to suit your individual needs can be provided on request.

With manual clamps

$3,490.00 + GST
SKU: AM CR223MS/1 Category: Tags: , , , ,
  1. FR223 Copy Router
  2. FR223 Copy Router - Image 2
  3. FR223 Copy Router - Image 3
  4. FR223 Copy Router - Image 4
  5. FR223 Copy Router - Image 5
  6. FR223 Copy Router - Image 6
  7. FR223 Copy Router - Image 7
  8. FR223 Copy Router - Image 8
  9. FR223 Copy Router - Image 9
  10. FR223 Copy Router - Image 10

Specifications

  • 750W (1.0HP) 230/240V
  • Spindle Speed 14,000 rpm
  • Maximum Slot 270mm x 110mm
  • Maximum height 110mm
  • Maximum width 140
  • Template Size 440 x 115mm
  • Includes Template for Lockwood Locks
  • 8mm Collet
  • 5mm Router bit included
  • Two Manual Clamps
  • Pneumatic spray mist lubricator
  • Dead man switch on motor

Options

  • MKN150 1.5 metre Infeed & outfeed Conveyors
