CK412 – Bead Saw

$5,990.00 + GST

Automatic twin head V-saw for uPVC glazing beads, with custom outfeed conveyor.

Capable of cutting multiple lengths at once with specialised tooling.

SKU: UPVC CK412/3 Category: Tags: , , , , ,

Specifications

Twin Blade V-Mitre Saw for PVC Glazing Beads
2 x 1.2kW 415V Induction motors

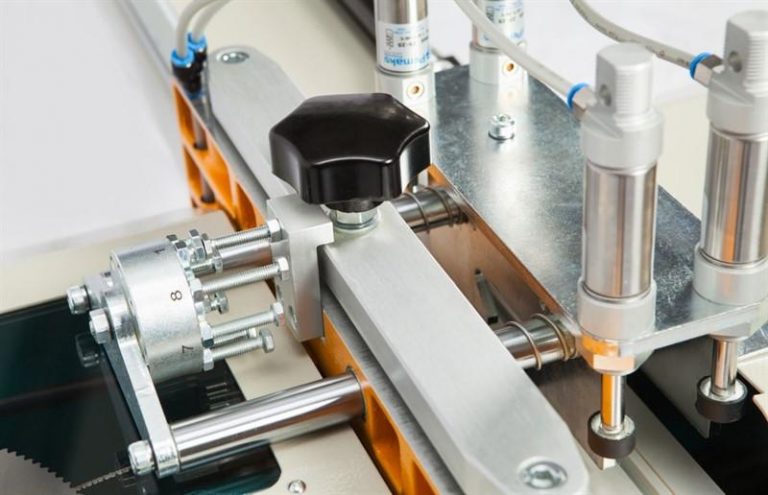

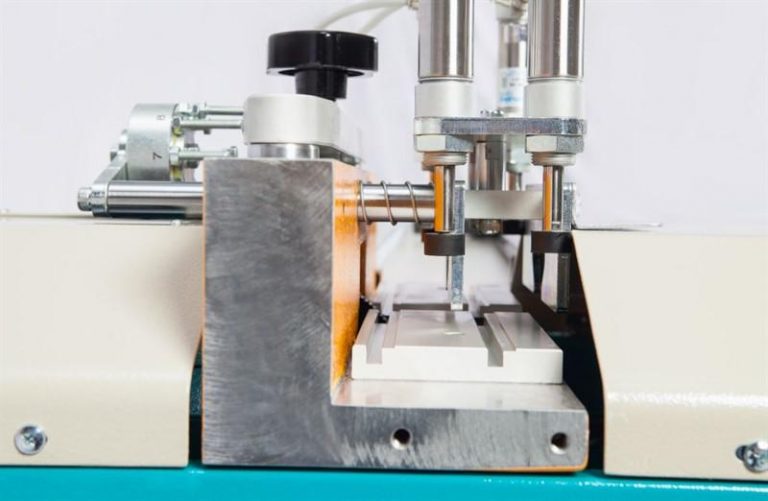

4 Vertical Pneumatic clamps
Automatic cutting process
110 mm & 200 mm blades included
MKN152 Multi stop support table included
Air dust gun included
Able to cut up to 8 different bar profiles

Optional

SKN 301 Automatic positioning stop

Additional information

Weight 134 kg
Dimensions 54 × 113 × 124 cm

Cut Chart

Downloads

CK412_Manual_ENG_2014

CK412_Spare_Parts

Video
