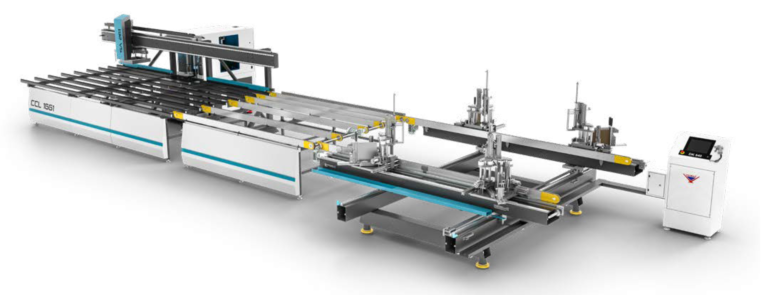

CCL 1661 – uPVC Processing Line

CCL 1660 – Providing 2 and 4 axis CNC controlled corner cleaning movement and the 4 corners of PVC profiles welding line.

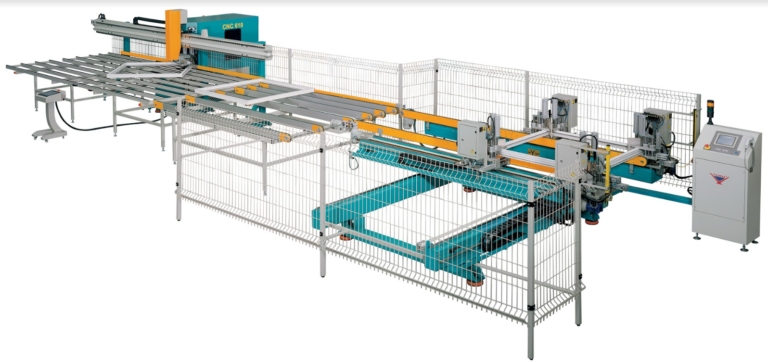

CNC controlled four corner PVC welding and cleaning line that provides movement in 2 and 4 axes. After welding process at DK 540, the frame goes to the Cooling Unit (SA 250) automatically. Then the Robot Unit (SA 260) automatically takes the frames from the Cooling Unit (SA 250) where the cleaning process starts and carries it by turning to the CNC 608 or 610 Cleaning Machine.

SKU: UPVC CCL 1661 Categories: , , , Tags: , ,


  • Special profile cleaning programs
    • Manual and automatic operating modes
    • Automatic sash and frame profile recognition system
    • Profile width and height measurement system
    • 11 set of automatic profile cleaning knives
    • Separate cleaning knives for color and white profiles
    • Automatic central lubrication system
    • Window based touch screen
    • Profile program transfer via USB flash memory
    • Remote connection and technical support capability
    • Movable control panel
    • Speed change during the process
    • 220 frames / 8 hours (609 CNC) and 270 frames / 8 hours (CNC 611)
    machining capacity
    • Visible of screen alarms and warnings
    • Phase control system
    • Low pressure control system
    • Ability of cleaning all four corners and end-of line transfer with automatic
    profile rotation robot system
    • Automatic system allowing movement in 2 or 4 axes
    • Automatic transition feature between 0.2 and 2.0 mm welding range, specific to
    Yılmaz machine
    • Automatic operation mode integrated with barcode reader or manual operation
    as per entered dimensions
    • Lame sash door welding
    • Capable of entering the welding parameters on the screen and storing them
    • Fast and easy teflon replacement feature
    • Ability of creating 1.000 pieces of profile recipes
    • Monitoring of processing times during the operation
    • Easy placement of long size profiles on the welding unit
    • Milimeter or inch operation system modes
    • Max square dimension that SA 261 machine can be rotated is 2.200 x 2.200
    mm. The squares that are having larger dimensions are rotated manually during
    the welding operation

Additional information

Weight 2079 kg
Dimensions 408 × 220 × 175 cm
