AIM 3410

$130,000.00 + GST

4 Axis CNC Machining Centre, for drilling and milling of Aluminium and uPVC profiles. ISO Platform and ISO Language Editor.
Supplied with 5 Tools and collets.

Out of stock

SKU: AIM 3410 Categories: , Tags: , , ,

Specifications

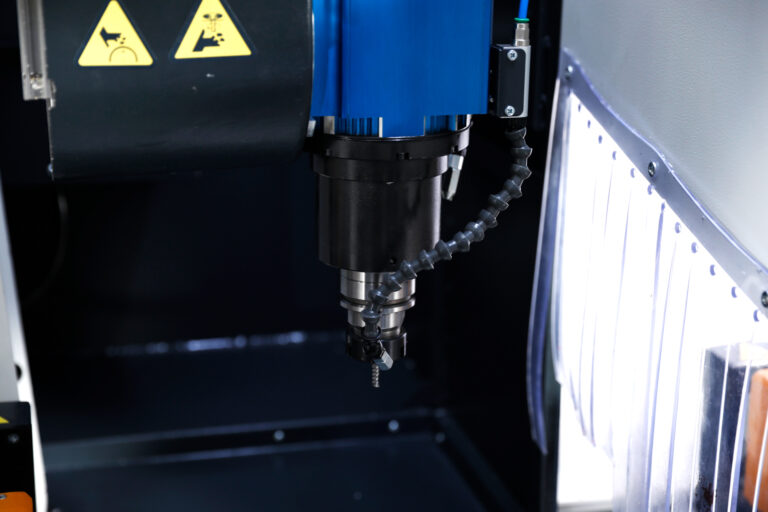

  • 7.5 kW¬† Spindle
    24,000 RPM
    Working Length 3200mm
    Working Width 300mm
    Working Height 260mm
    X Axis 60 metre/minute
    Y Axis 50 metre/minute
    Z Axis 50 metre/minute
    A Axis 7200 deg/minute
    8 position Automatic Tool Change

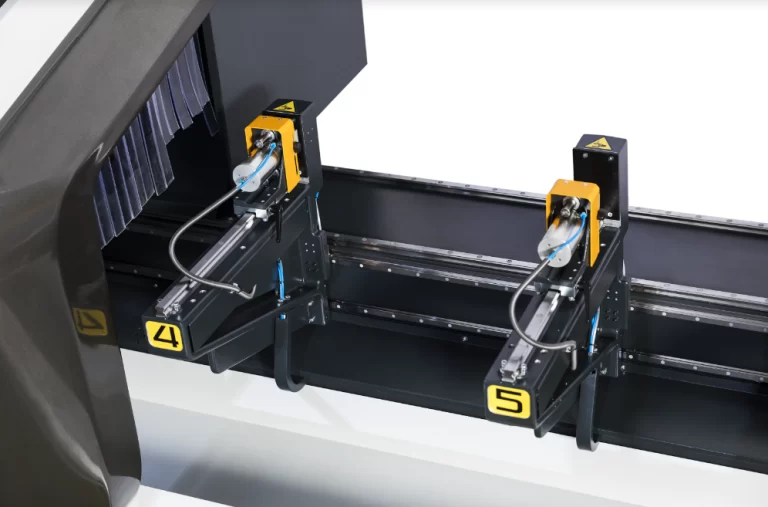

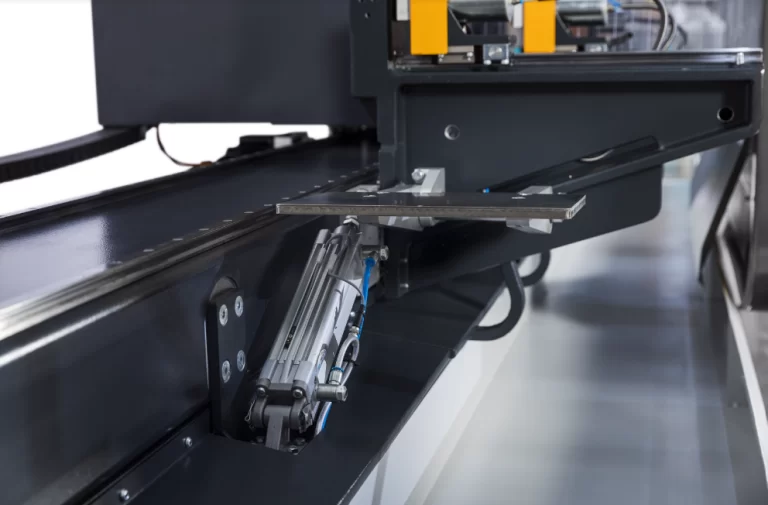

    4 Clamps Automatic Positioning
    Standard Macros (Holes, Circles, Slots, Rectangle, Locks)
    Automatic Positioning of clamps

Additional information

Weight 1000 kg
Dimensions 500 × 300 × 300 cm

Videos

Machining Capacity
