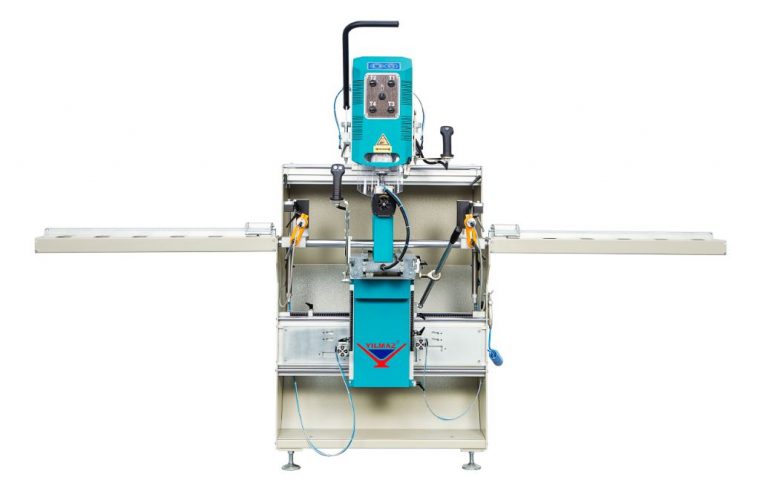

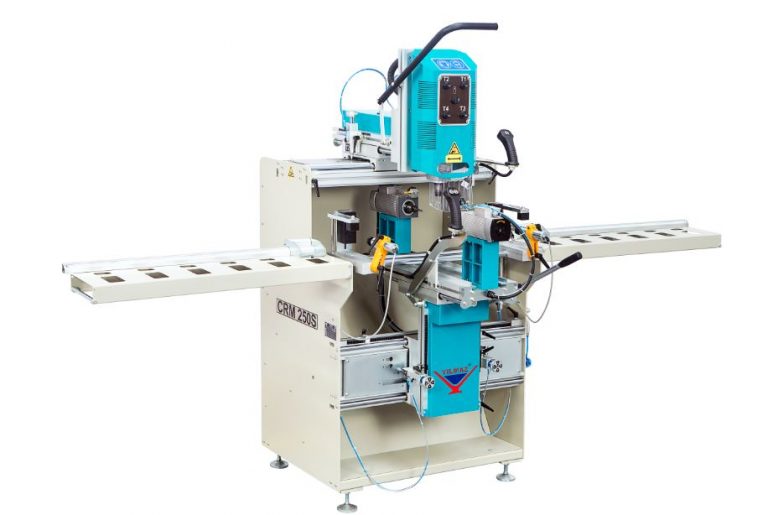

CRM250S Multi Spindle Copy Router

$15,900.00 + GST

Introducing the “New” CRM250S Copy Router for Aluminium and uPVC, access 3 sides of your Aluminium or uPVC Profile quickly and easily.

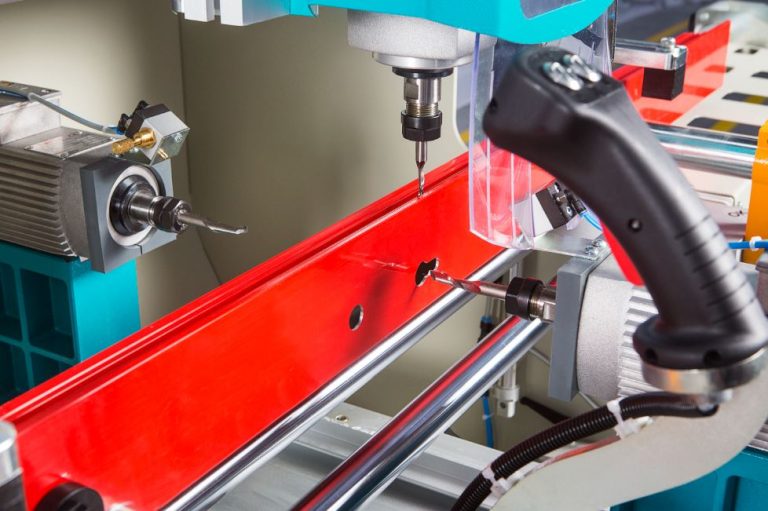

With 4 Pneumatic Copy Pins, the Luna CRM250S can machine all 3 surfaces of your extrusion without unclamping the piece during the routing operation.

The Luna CRM20S also features a powerful 1.1KW variable speed motor, from 2800rpm to 12000rpm, which means it is capable of routing steel up to 2mm thick when a special mill cutter is used.

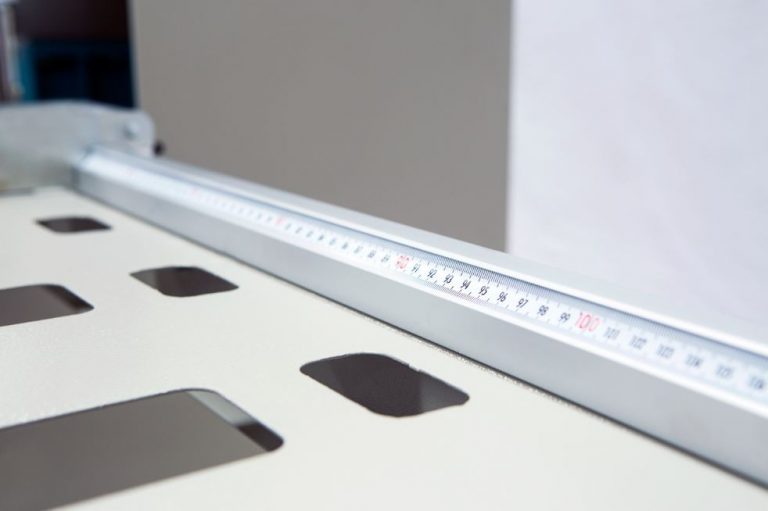

Also included are 2 x integrated roller tables with measuring stops.

SKU: AM CRM 250S/1 Category:

Specifications

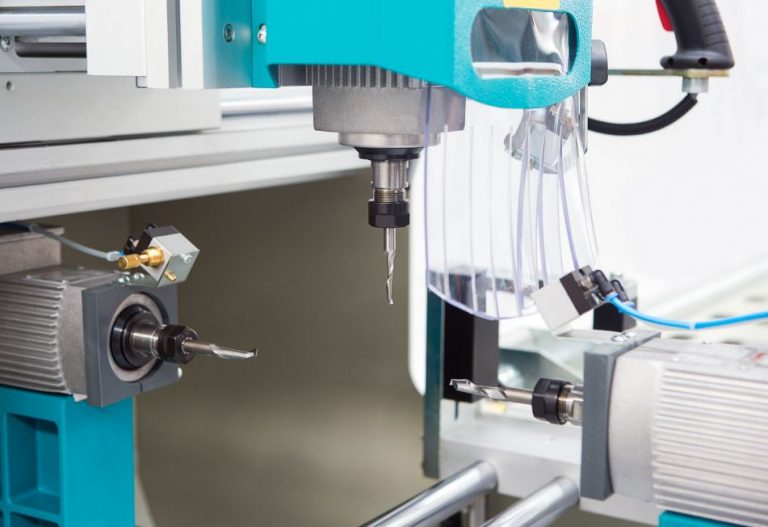

  • 3 x 1.1kW 240V Motors – 15Amp Plug
  • Equipped with variable speed spindle adjusted by inverter and potentiometer (from 2800 to 12000 rpm)
  • Maximum Slot X-Axes 650mm x 350mm
  • Maximum Slot Y-Axes 180mm x 230mm
  • Maximum Slot Z-Axes 170mm x 150mm
  • 8mm ER Series Collet
  • Four Pneumatic Clamps
  • Pneumatic spray mist lubricator
  • Air duster gun
  • Copy router operations on 3 axes.

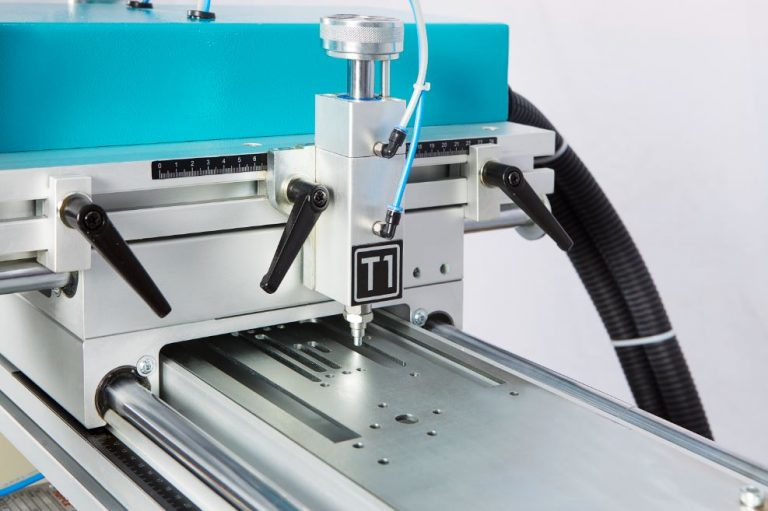

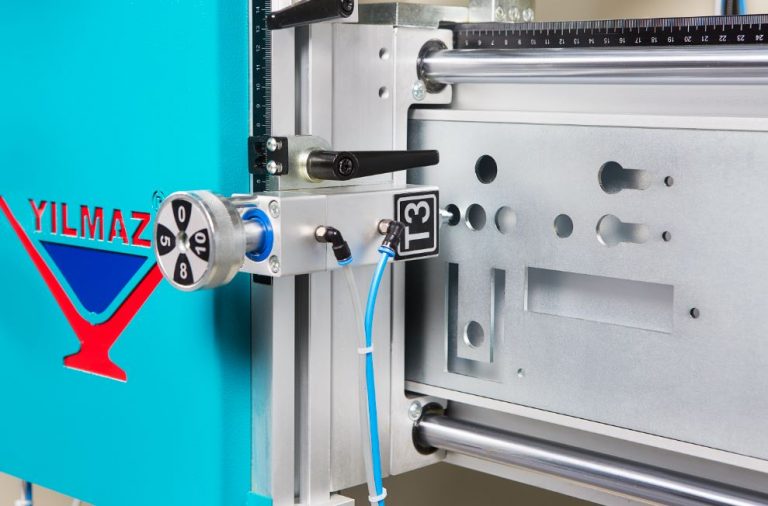

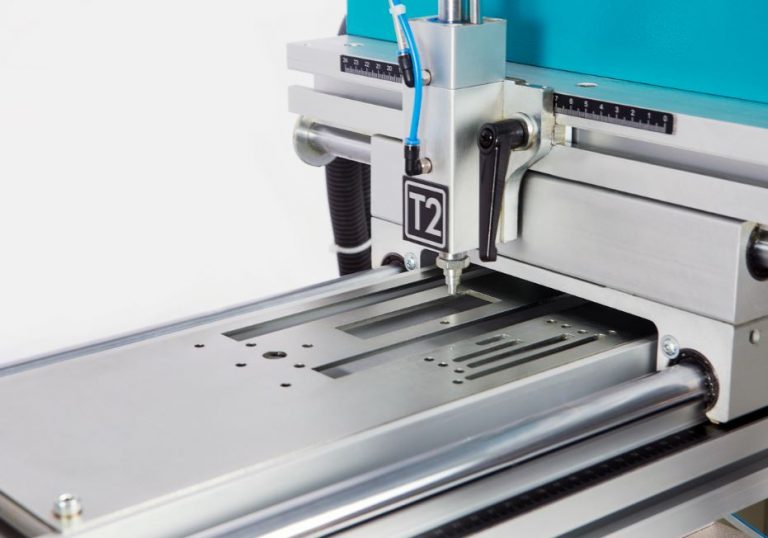

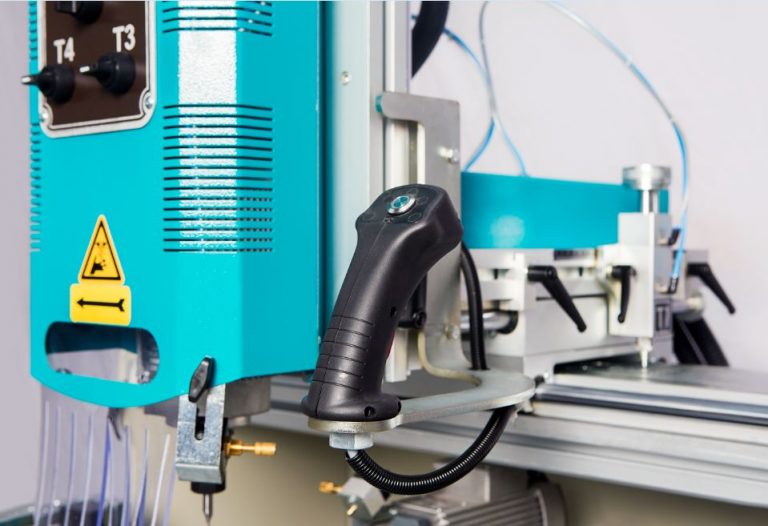

  • Quick and easy adjustment of the tracer pins.

Additional information

Weight 380 kg
Dimensions 100 × 105 × 182 cm
